ARC rotary machine

Garments dyeing

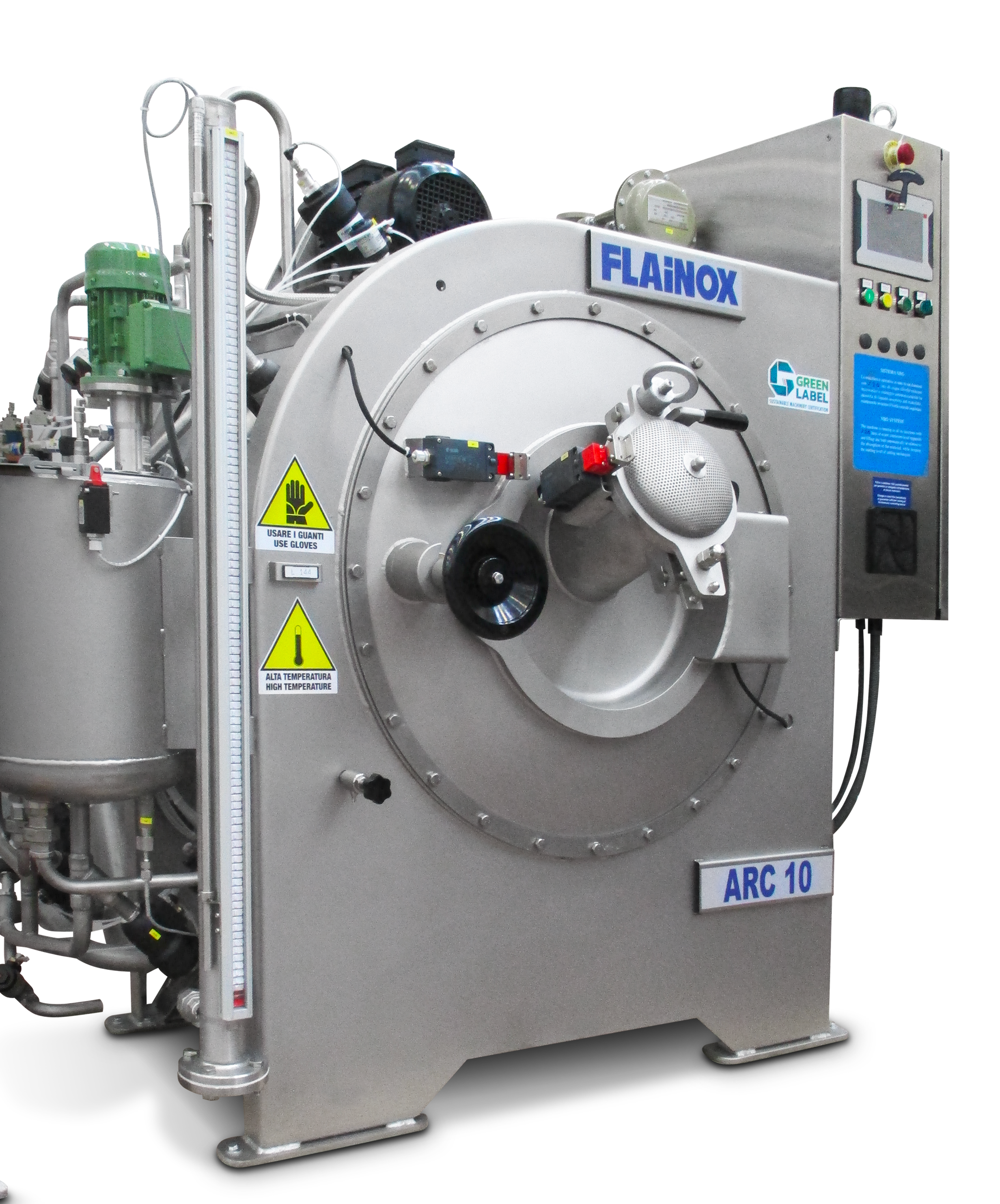

ARC rotary machine

Single basket rotary machine for dyeing ready-made garments, socks and seamless.
Download Brochure

Request brochures

I have read the Privacy Policy and consent to the processing of personal data in accordance with Articles 13-14 of Regulation (EU) 2016/679 GDPR (General Data Protection Regulation) and subsequent amendments.

Technical details

• Ideal for sampling and small productions.

• Available in atmospheric 98 ° C, 105 ° C and high temperature versions.

• Machine completely built in thick AISI 316 / L stainless steel.

• Basket rotation speed regulated by inverter

• Preparation for thermal and hydraulic connections

• FLAINOX Industrial PC with remote online assistance.

Technical details

Nominal loadKg.1030
Max. working temperature at sea-level°C98/opt. 10598/opt. 105
Usable drum volume


Minimum dyeing speedRpm55
Maximum drum speedRpm600550
Number of tanks for additions (standard)n.12
Average power consumptionkW/h24
Total width(A) mm1230200
Total depth(B) mm12001670
Total height(C) mm1700220
Net weightkg6501750
Number of compartmentsn.11
